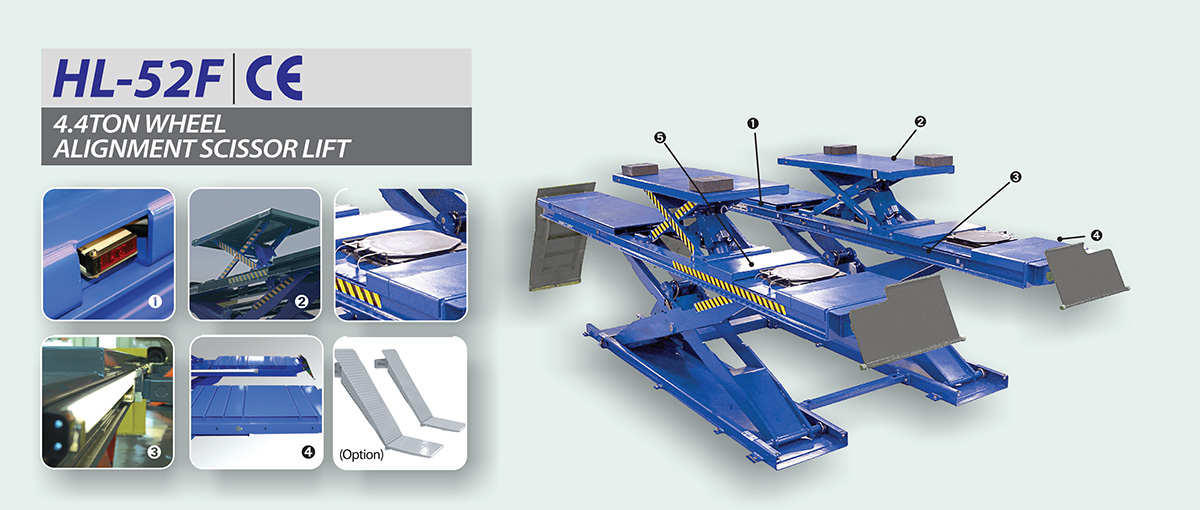

Heshbon HL-52F 4.4 ton Wheel alignment scissor lift

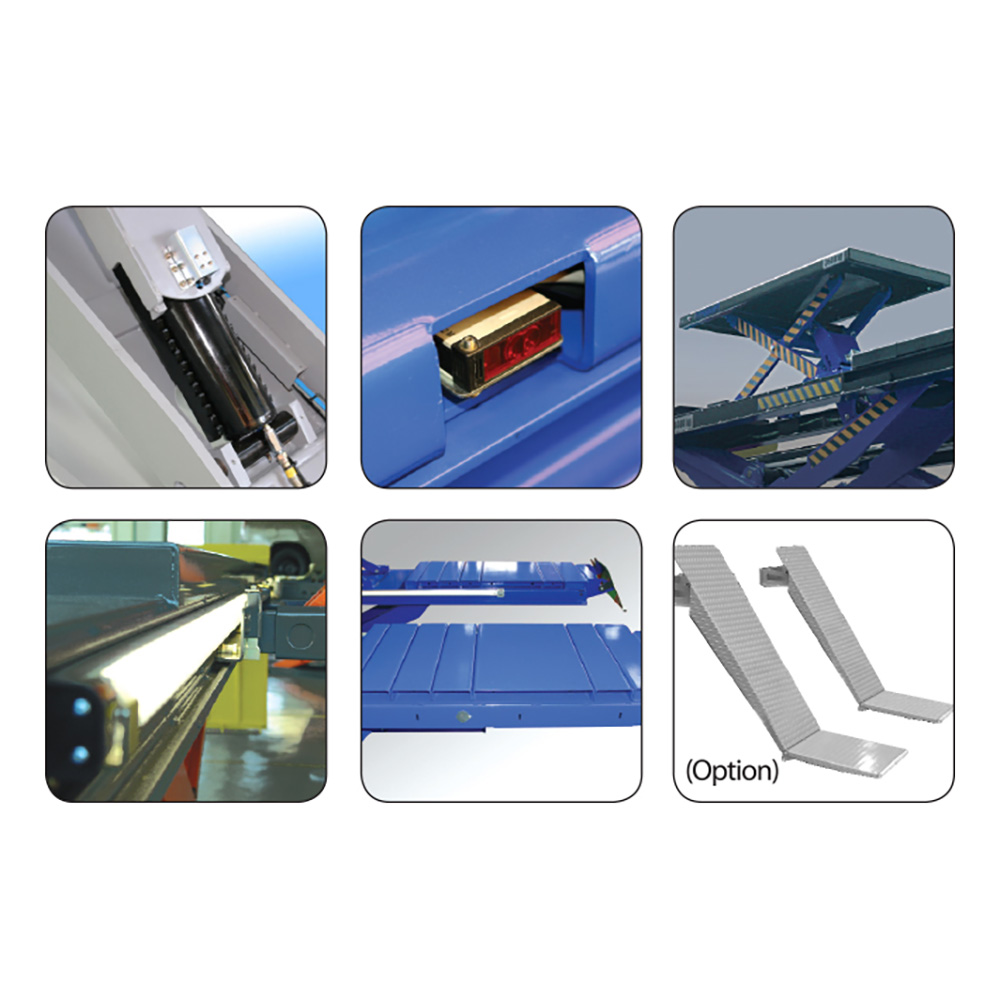

1. Key Features

HL-52F scissor lift for 4.4 ton wheel alignment service
Automatic air lock release system for safety
Lock position sensor enhances operational safety
Hydraulic synchronization with torsion bar system
Electronic synchronization control via photo-cell
Descent alarm signal for safe operation
Built-in auxiliary lift for wheel-free service
Front turntable recesses and rear slip plates for alignment
Pneumatic locks on rear slip plates
Suitable for both floor-mounted and flush-mounted installation
Emergency lifting and lowering system
Two-step descent system ensures full foot protection
Optional lighting set and flush mount kit


2. Specifications

Model: HL-52F
Brand: Heshbon
Origin: Korea
Capacity: 4,400 kg (body) / 3,600 kg (jack)
Max height: 2,020 mm (body) / 480 mm (jack)
Dimensions: 6,340 x 2,100 x 265 mm
Power: 3ph, 3HP/4HP, 220/380V, 50/60Hz
Weight: 2,990 kg
Lifting/lowering time:
Body: 40–60 sec / 45–60 sec
Jack: 10–20 sec / 10–20 sec


3. Applications

Professional 4-wheel alignment service
Automotive workshops and tire service centers
Suitable for passenger cars, SUVs and light trucks
Undercar repair and maintenance


4. How to Use

Drive vehicle onto lift platform
Secure vehicle and check safety
Operate lift via control panel
Perform alignment or maintenance
Lower lift and release vehicle


5. FAQ

Question 1: What vehicles is HL-52F suitable for
Answer 1: Cars, SUVs and light trucks

Question 2: Does it support wheel alignment
Answer 2: Yes, alignment-ready design

Question 3: Is it safe to use
Answer 3: Yes, multiple safety systems

Question 4: Can it be flush mounted
Answer 4: Yes, supports both installations

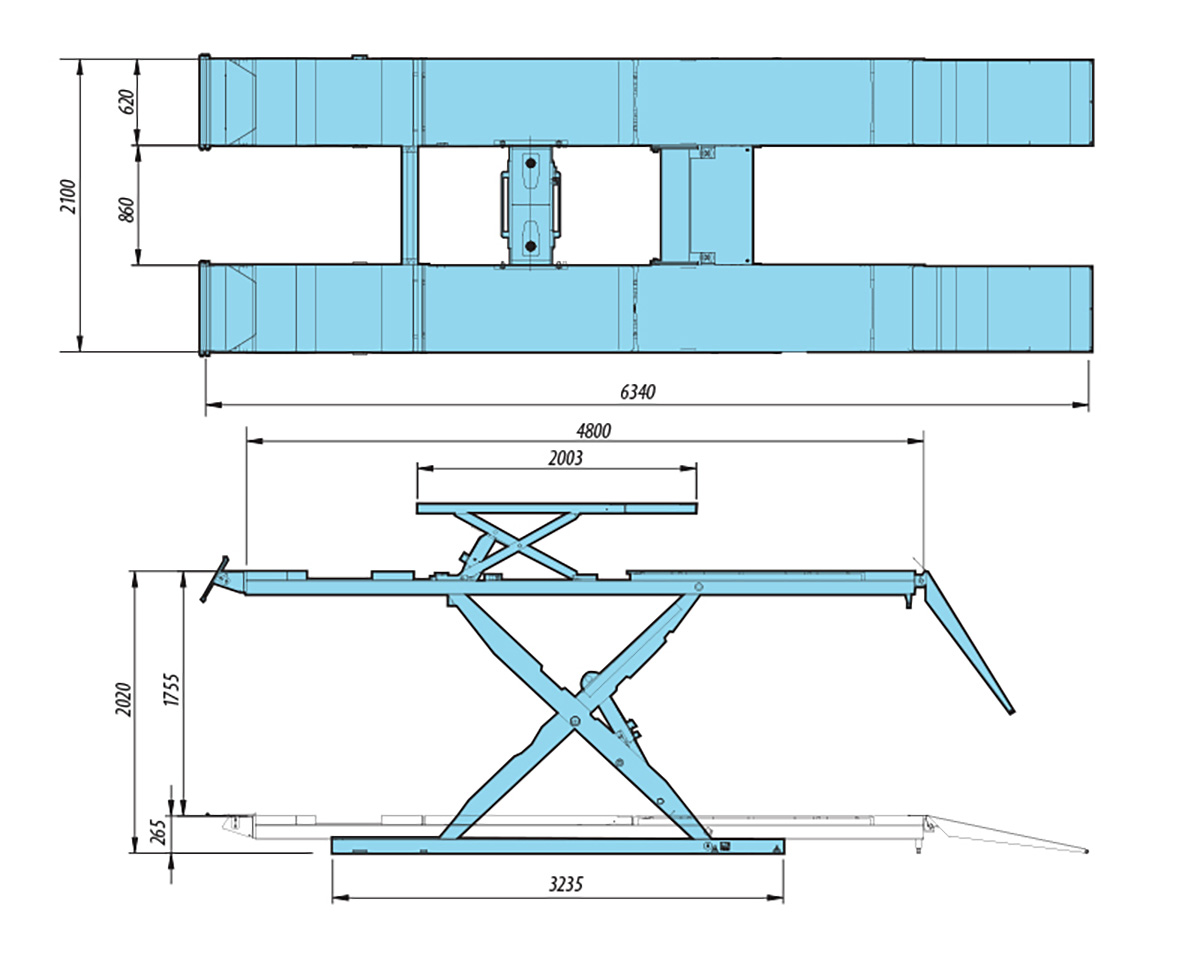

6. Lay-out

Cầu nâng cắt kéo 4.4 tấn cân chỉnh góc đặt bánh xe Heshbon HL-52F

Cầu nâng cắt kéo 4.4 tấn cân chỉnh góc đặt bánh xe Heshbon HL-52F
