Heshbon HL-53X 4 ton Wheel alignment scissor lift

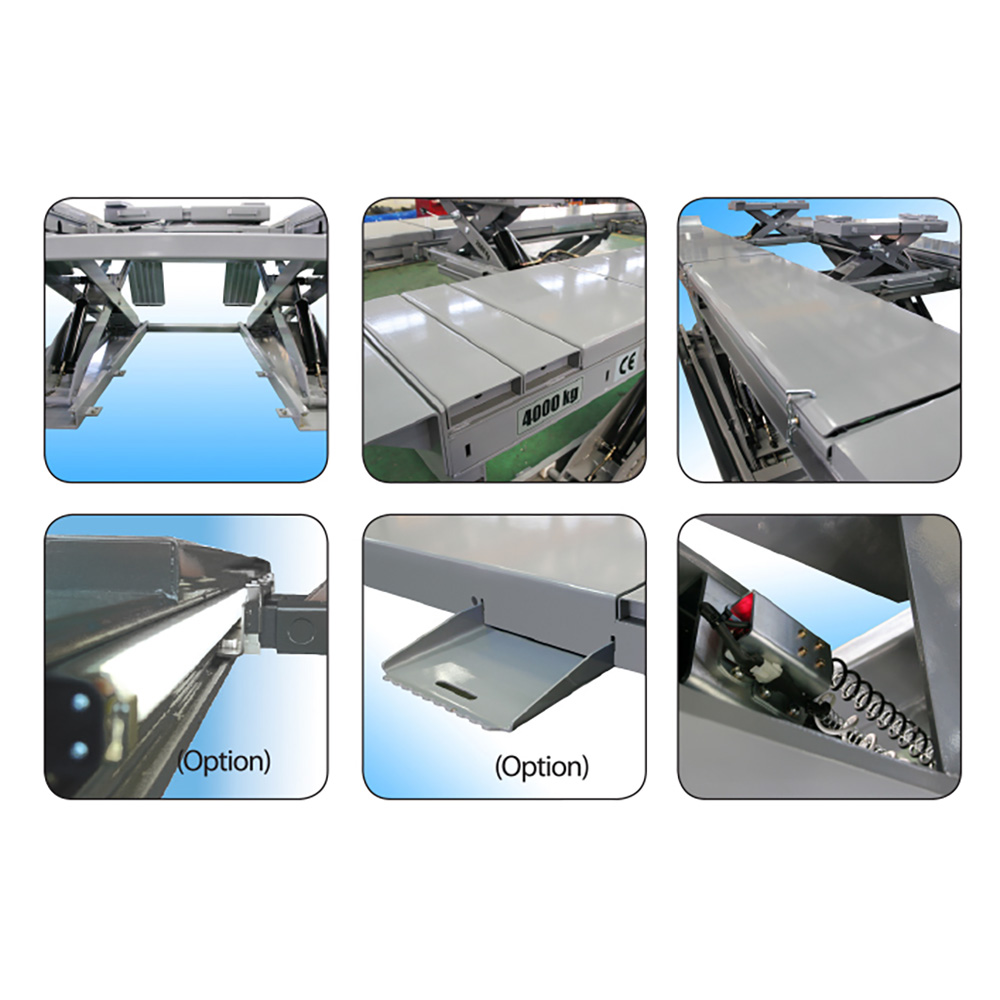

1. Key Features
HL-53X scissor lift designed for precise wheel alignment
Master & Slave hydraulic cylinder system for durability
Air-operated safety locking system
Stable synchronization via hydraulic valves
Front turn-table recesses and rear slip plates for alignment
Suitable for both above-ground and in-ground installation
Two-step descent system ensures full foot protection
Optional 4-unit lighting system for better visibility
Optional pit frame and step-up plates
2. Specifications
Model: HL-53X
Brand: Heshbon
Origin: Korea
Capacity: 4,000 kg (body) / 2,000 kg (jack)
Max height: 1,900 mm (body) / 530 mm (jack)
Dimensions: 5,945 x 2,150 x 260 mm
Power:
1ph: 2.5HP, 220V, 60Hz
3ph: 2HP, 220/380V, 50/60Hz
Weight: 2,150 kg
Lifting/lowering time:
Body: 40–60 sec / 35–45 sec
Jack: 5–15 sec / 10–30 sec
3. Applications
4-wheel alignment service
Automotive workshop and tire service centers
Suitable for passenger cars, SUVs and EVs
Undercar inspection and maintenance
4. How to Use
Drive vehicle onto platform
Secure and check safety
Operate lift via control panel
Perform alignment or service
Lower and release vehicle
5. FAQ
Question 1: What vehicles is HL-53X for
Answer 1: Cars, SUVs and EVs
Question 2: Can it be installed in-ground
Answer 2: Yes, above and in-ground
Question 3: Does it support alignment
Answer 3: Yes, alignment-ready design
Question 4: Is it safe
Answer 4: Yes, air lock and safety descent
