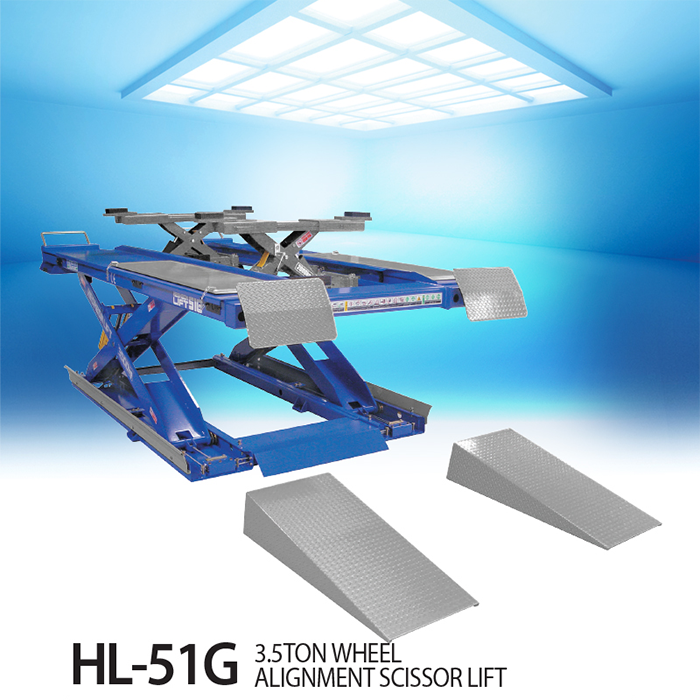

Heshbon HL-51G Wheel Alignment Scissor Lift

Heshbon HL-51G Wheel Alignment Scissor Lift

FEATURE :
- High-Performed durable hydraulic cylinders composed by double pressure seals.
- Sync. hydraulic block & torsion bar ensure High-Performed synchronization.
- Air cylinder operate locking device with automatic engagement and pneumatic release system ensure safety.
- Front turn-table recesses and rear sliding plates for 4-wheel alignment operation.
- Hydraulic two-level 2ton scissor jack. (OPTION)

SPECIFICATION :
Model No. : HL-51G
Origin: Heshbon
Made in Korea
Lifting Capacity (kg) - Body : 3,500 / Jack : 2,000 kg
Max.Lifting Height (mm) - Main : 1,780 mm / Jack : 455 mm

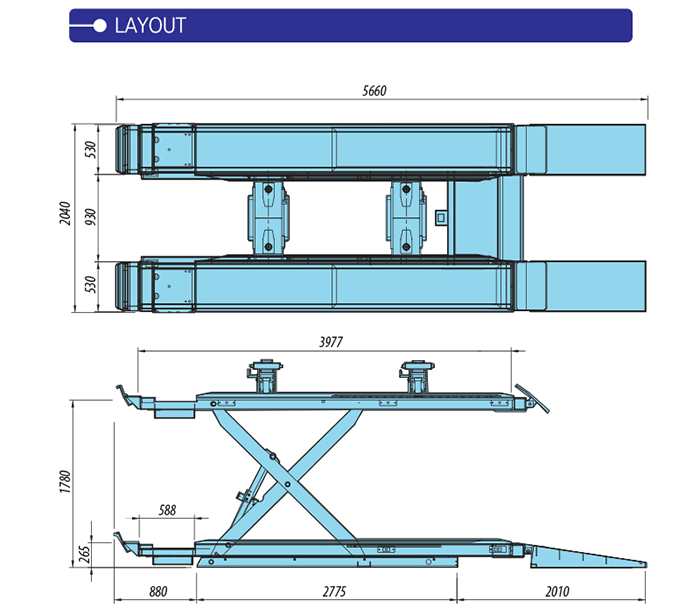

Dimension (mm) : 5,660(L) X 2,040(W) X 265(H)
Power Supply & Motor - 1ph : 2.5HP, 4P, 220V, 50/60 Hz;
                     - 3ph : 2HP, 4P, 220/380V, 50/60 Hz
Net Weight: 1,800kg
