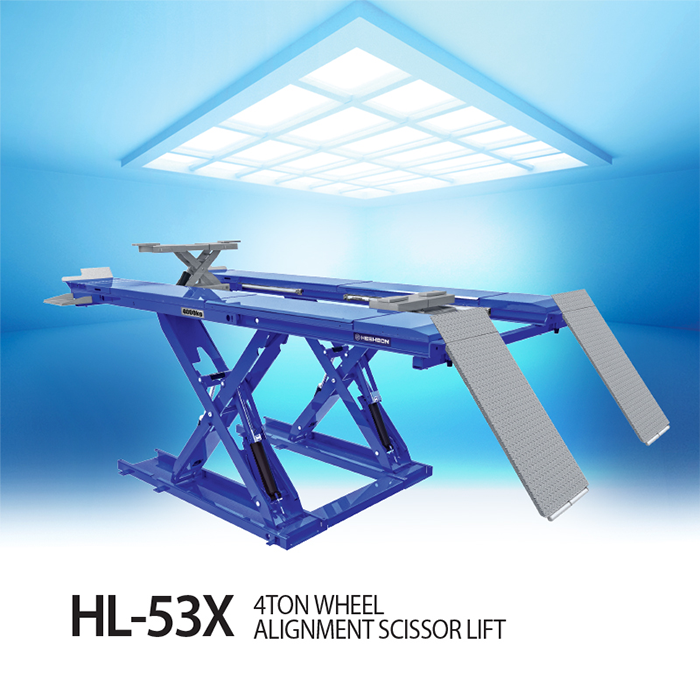

Heshbon HL-53X Wheel Alignment Scissor Lift

Heshbon HL-53X Wheel Alignment Scissor Lift

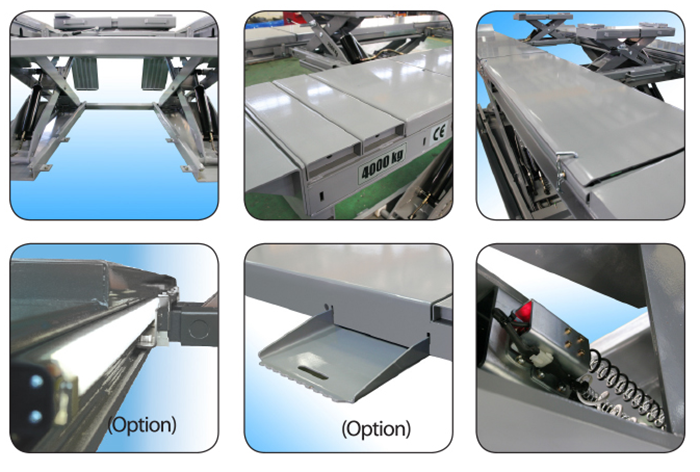

FEATURE
- Master&Slave system composed by high-performed durable hydraulic cylinders.
- Air operated locking device.
- Easy synchronization control system by special hydraulic valves.
- Front turn-table recesses and rear sliding plates for 4-wheel alignment operation.
- Applicable to both in/above-ground mount.
- Pit frame for in-ground type. (Option)
- Step-up plate for worker's convenience. (Option)
- Lighting set, 4 units (option)
- Two-step descent system gives full foot protection.

SPECIFICATION
Model No. : HL-53X
Origin: Heshbon
Made in Korea
Lifting Capacity (kg) - 4,000kg/2,000 kg
Min/Max.Lifting Height (mm) : Body 1,900/Jack 530mm

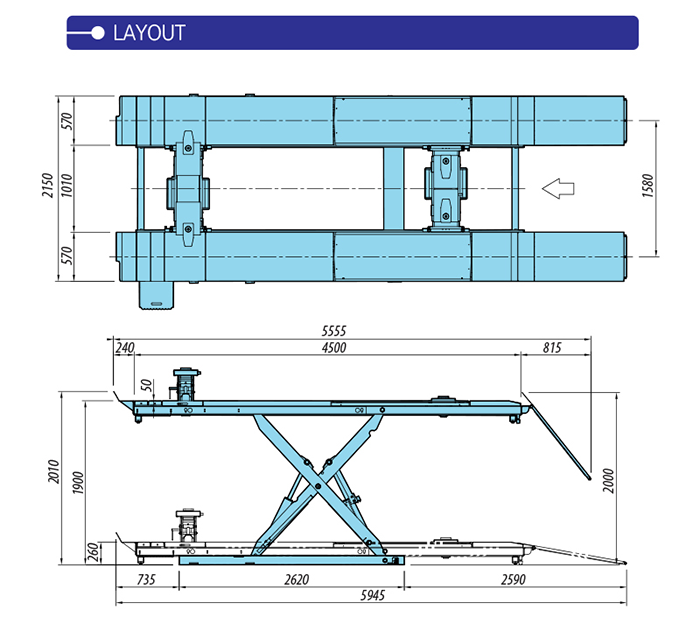

Dimension (mm) : 5,945(L) X 2,150(W) X 260(H)
Power Supply & Motor : 1ph, 2.5HP, 4P, 220V, 60 Hz
                       3ph, 2HP, 4P, 220/380V, 50/60 Hz
Net Weight : 2,150 kg
