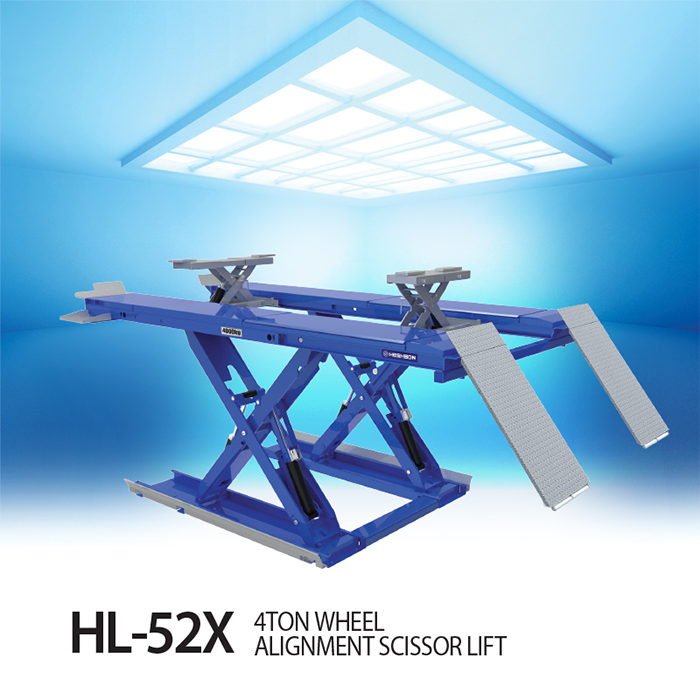

Heshbon HL-52X Wheel Alignment Scissor Lift

Heshbon HL-52X Wheel Alignment Scissor Lift

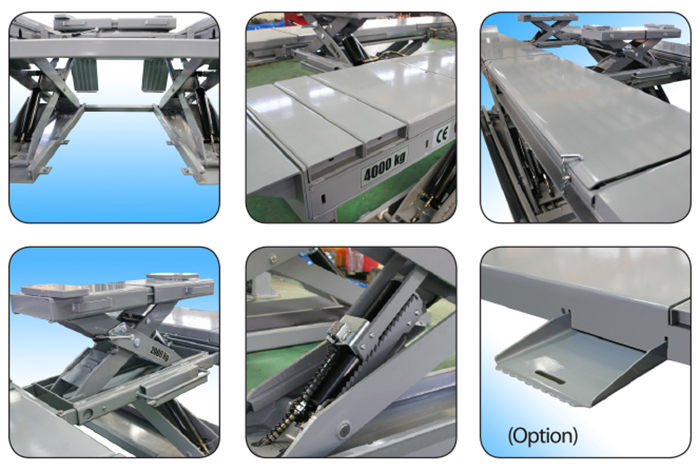

FEATURE
- Master&Slave system composed by high-performed durable hydraulic cylinders.
- Air operated locking device.
- Easy synchronization control system by special hydraulic valves.
- Front turn-table recesses and rear sliding plates for 4-wheel alignment operation.
- Applicable to both in/above-ground mount.
- Pit frame for in-ground type. (Option)
- Step-up plate for worker's convenience. (Option)

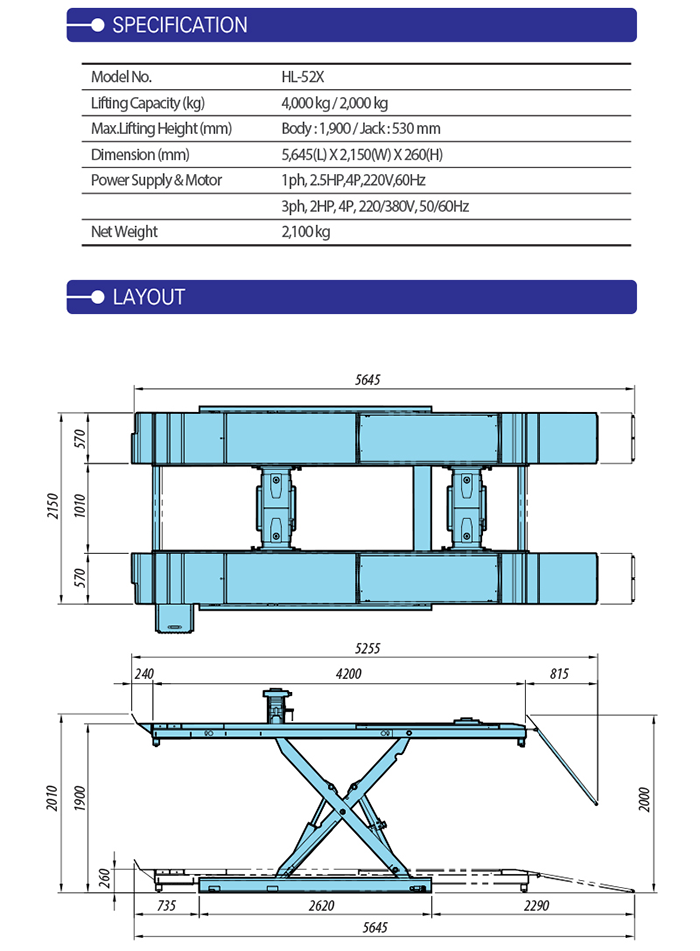

SPECIFICATION
Model No. : HL-52X
Origin: Heshbon
Made in Korea
Lifting Capacity (kg) : Body : 4,000 kg/2,000 kg
Min/Max.Lifting Height (mm) : Body :1,900/ Jack : 530 mm
Dimension (mm) : 5,645(L) X 2,150(W) X 260(H)
Power Supply & Motor : 1ph, 2.5HP, 4P, 220V, 60 Hz
                       3ph, 2HP, 4P, 220/380V, 50/60 Hz
Net Weight : 2,100 kg
