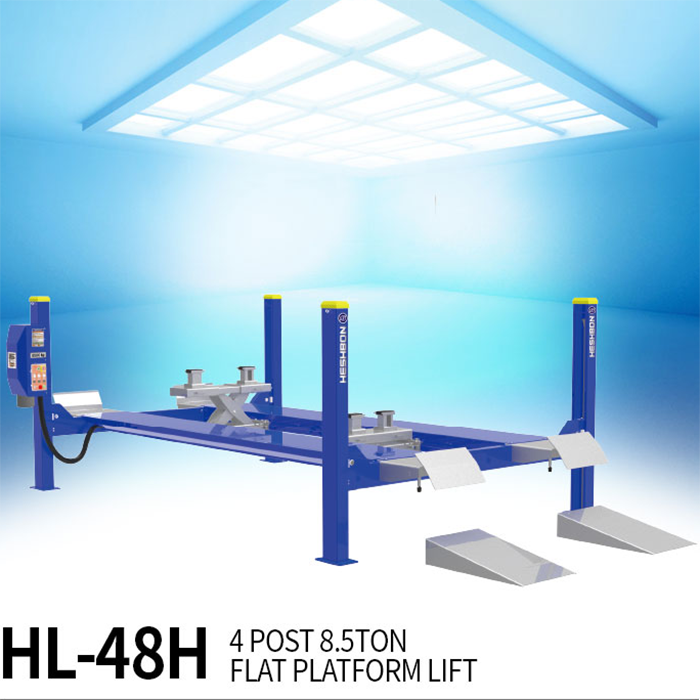

Heshbon HL-48H 4 post 8.5 ton flat platform lift

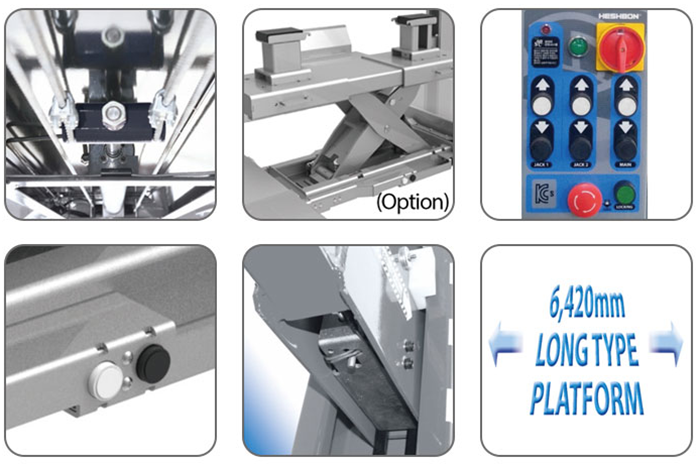

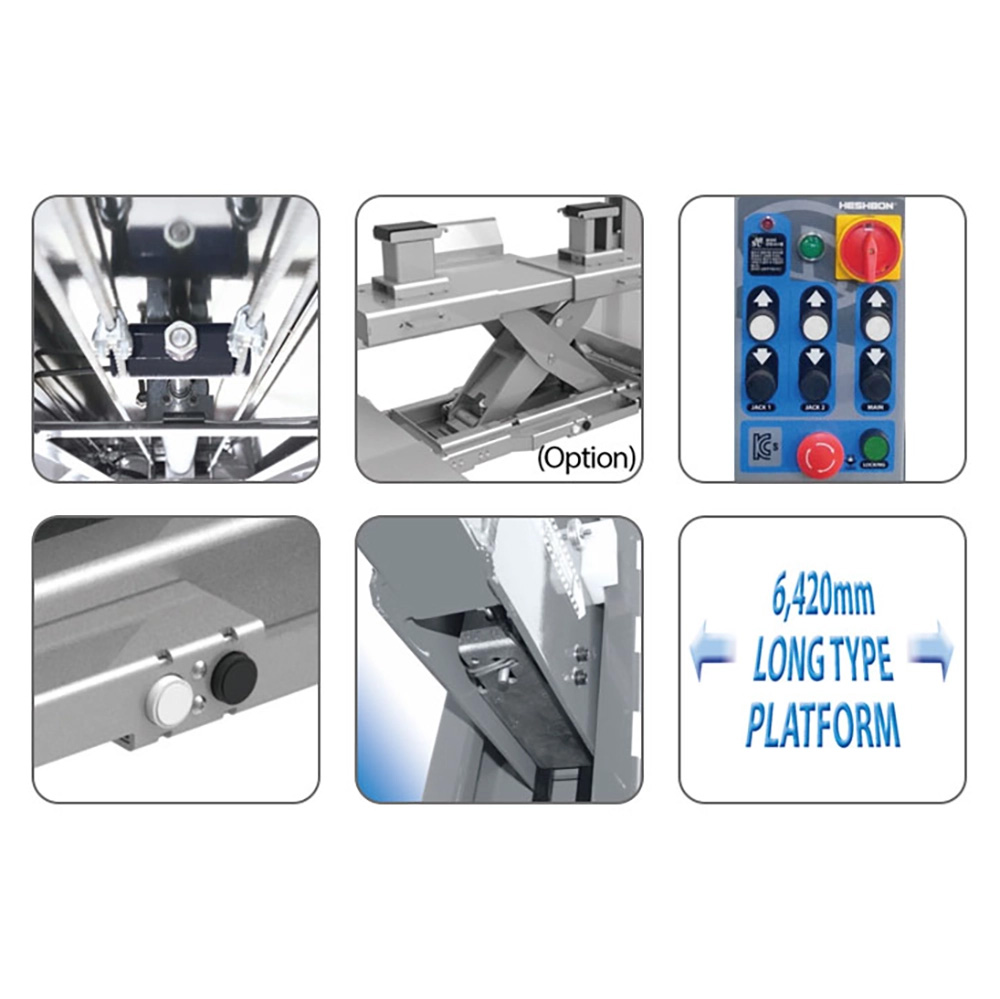

1. Key Features
Heshbon HL-48H 4 post lift with heavy-duty 8.5 ton capacity
Cylinder and power pack capable up to 10 ton capacity
Auto control system for center rolling jack
Hydraulic cylinder located inside platform for protection
High-strength galvanized pre-stretched lifting cables
Mechanical lock release lever for emergency
Adjustable ratchet rails ensure platform leveling
Automatic eccentric brake system ensures safety in cable failure
Large diameter self-lubricating pulleys reduce maintenance
Optional 5 ton scissor jack and remote controller
2. Specifications
Model: HL-48H
Brand: Heshbon
Origin: Korea
Capacity: 8,500 kg (body) / 5,000 kg (jack)
Max lifting height: 1,750 mm (body) / 595 mm (jack)
Dimensions: 7,580 x 3,835 x 2,215 mm
Power: 3 phase 4HP, 220/380V, 50/60Hz
Weight: 2,590 kg
Lifting/lowering time:
Body: 75–85 sec / 50–60 sec
Jack: 5–15 sec / 10–20 sec
3. Applications
Used in heavy-duty truck service workshops
Suitable for trucks, buses and heavy vehicles
Ideal for inspection, maintenance and repair
Can be used for alignment with optional accessories
4. How to Use
Drive vehicle onto platform
Secure wheels and check safety
Operate lift via control panel
Perform maintenance or inspection
Lower safely after use
5. FAQ
What vehicles is HL-48H suitable for
Heavy trucks, buses and special vehicles
What is the capacity
8.5 tons body and 5 tons jack
Is it safe
Yes, with safety lock and brake system
Can it lift heavy trucks
Yes, designed for heavy-duty use

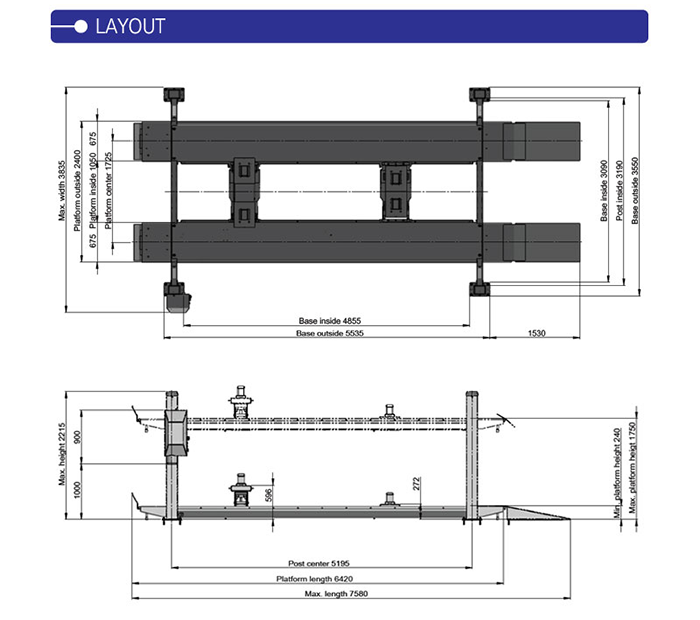

6. Lay-out
