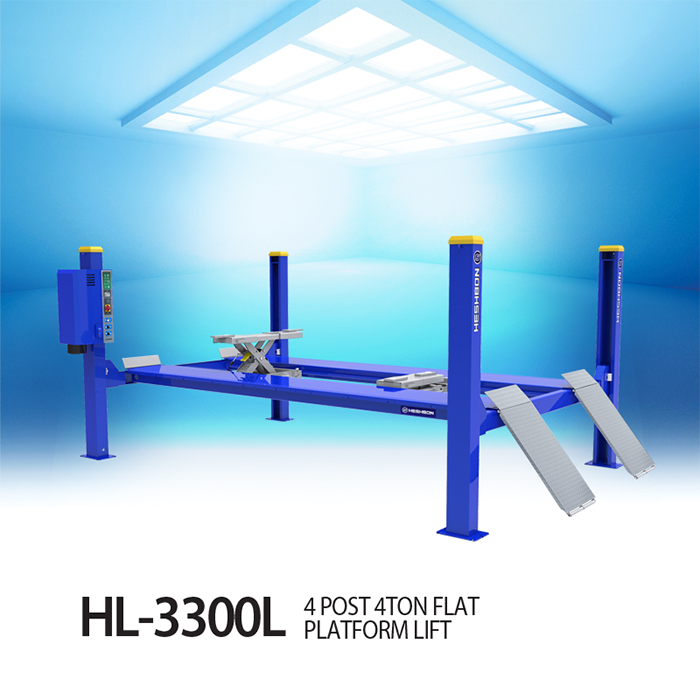

Heshbon HL-3300L 4 post 4 ton flat platform lift

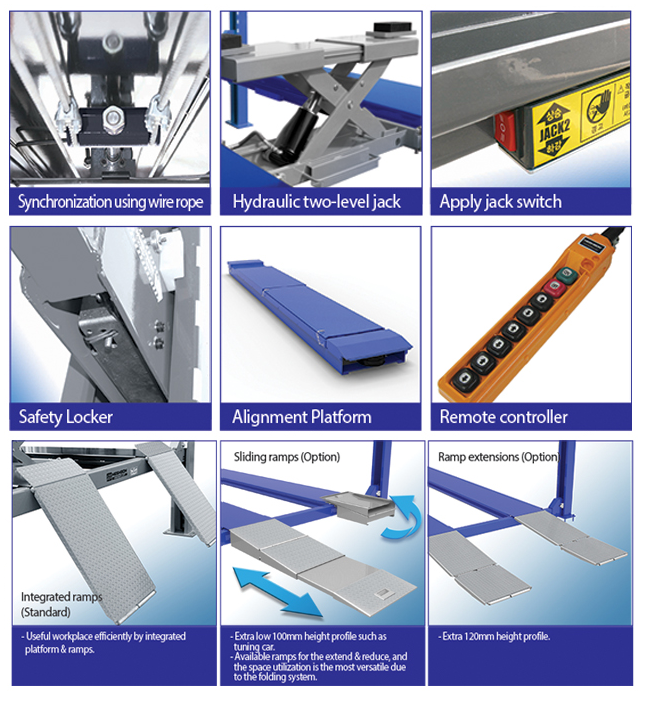

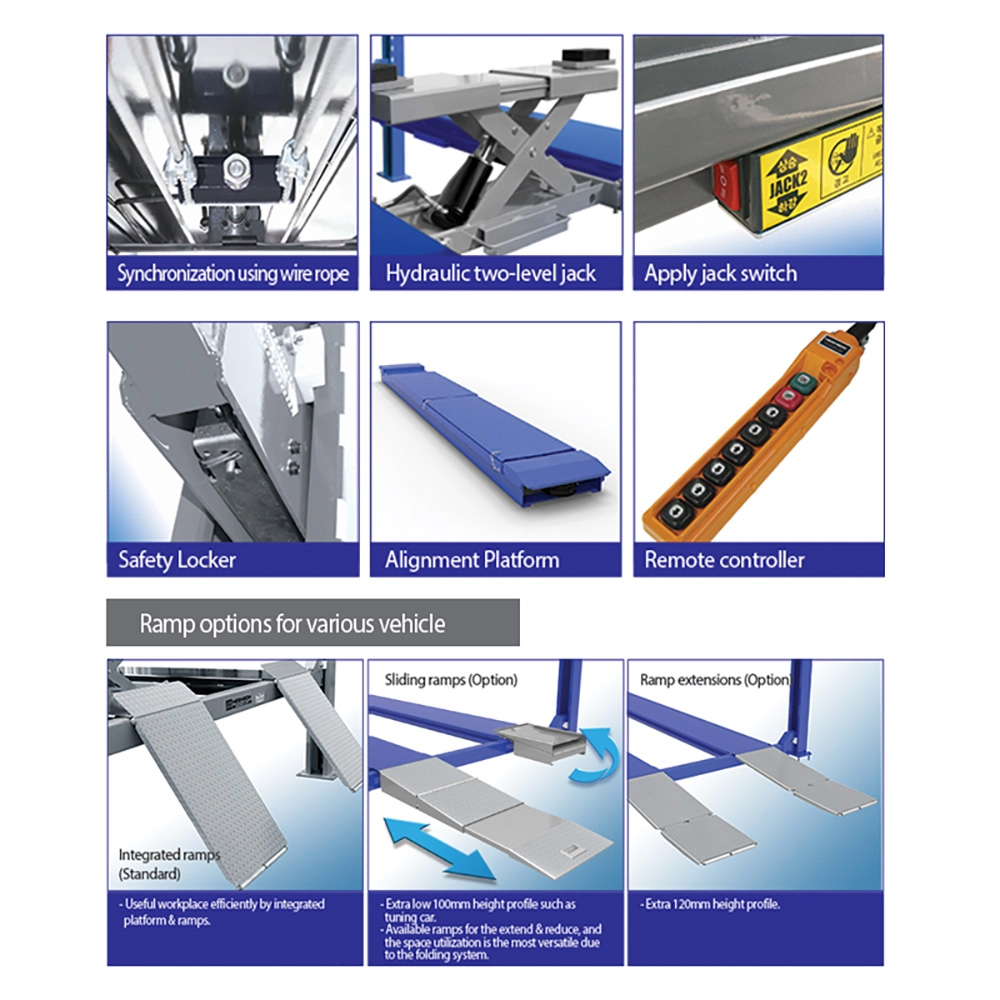

1. Key Features

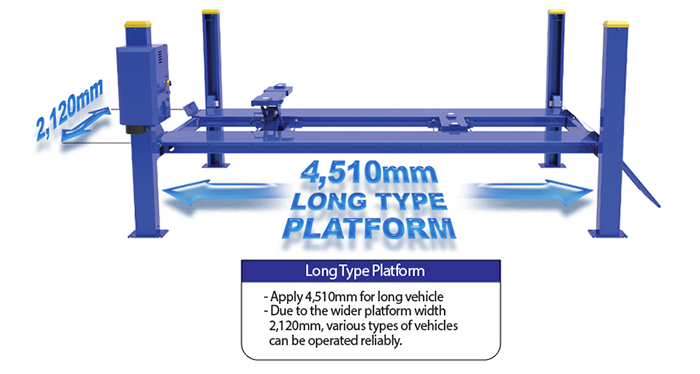

Heshbon HL-3300L 4 post lift with long platform for long vehicles
Wide platform 2,120mm supports various vehicle types
Optional sliding ramps for flexible extension and space saving
Hydraulic cylinder located inside platform for protection
High-strength galvanized pre-stretched lifting cables
Mechanical lock release lever for emergency
Adjustable ratchet rails ensure precise leveling for alignment
Automatic eccentric brake system ensures safety in case of cable failure
Large diameter self-lubricating pulleys reduce maintenance
2. Specifications
Model: HL-3300L
Brand: Heshbon
Origin: Korea
Capacity: 4,000 kg (body) / 2,000 kg (jack)
Max lifting height: 1,750 mm (body) / 575 mm (jack)
Dimensions: 6,278 x 3,360 x 2,215 mm
Power (1 phase): 2.5HP, 220/380V, 50/60Hz
Power (3 phase): 2HP, 220/380V, 50/60Hz
Weight: 1,565 kg
Lifting/lowering time:
Body: 40–60 sec / 30–50 sec
Jack: 5–15 sec
3. Applications
Used in workshops and wheel alignment centers
Suitable for cars, SUVs and long wheelbase vehicles
Ideal for underbody inspection and maintenance
Perfect for 4-wheel alignment services
4. How to Use
Drive vehicle onto platform
Secure wheels and check safety
Operate lift via control panel
Perform alignment or maintenance
Lower safely after use
5. FAQ
Is HL-3300L suitable for long vehicles
Yes, long platform design
What is the capacity
4 tons body and 2 tons jack
Is it safe
Yes, equipped with safety lock and brake system
Is maintenance required
Minimal due to durable components

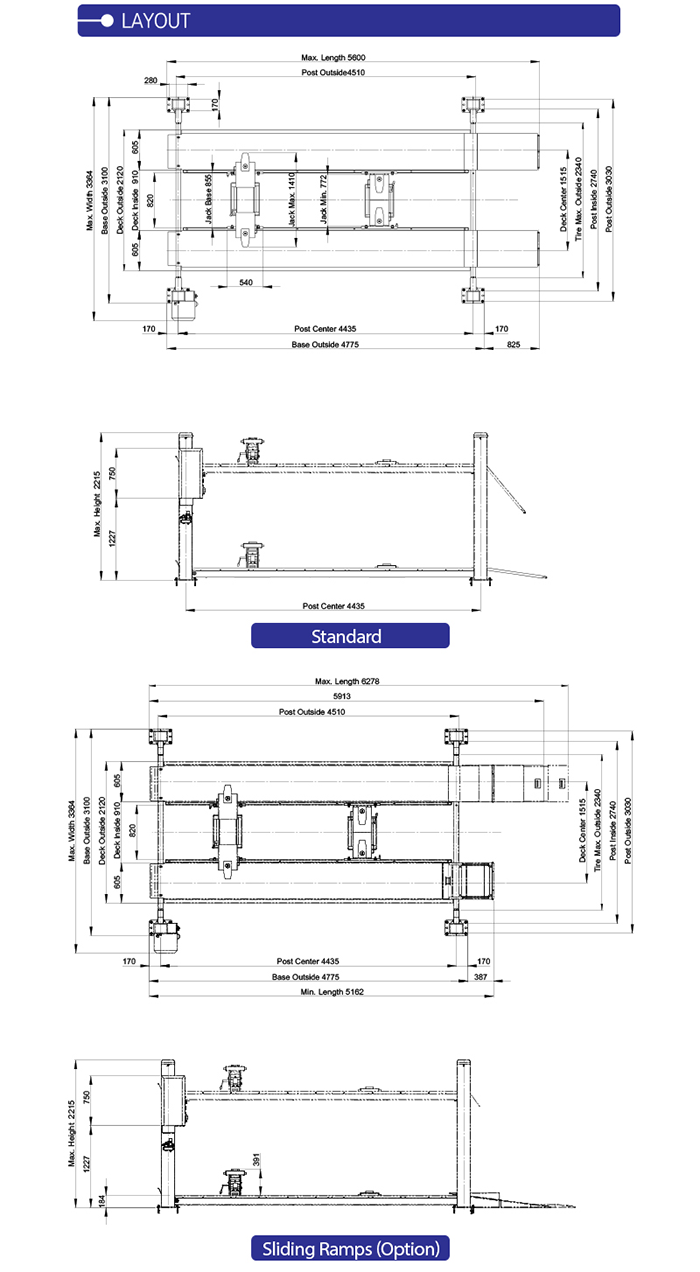

6. Lay-Out
