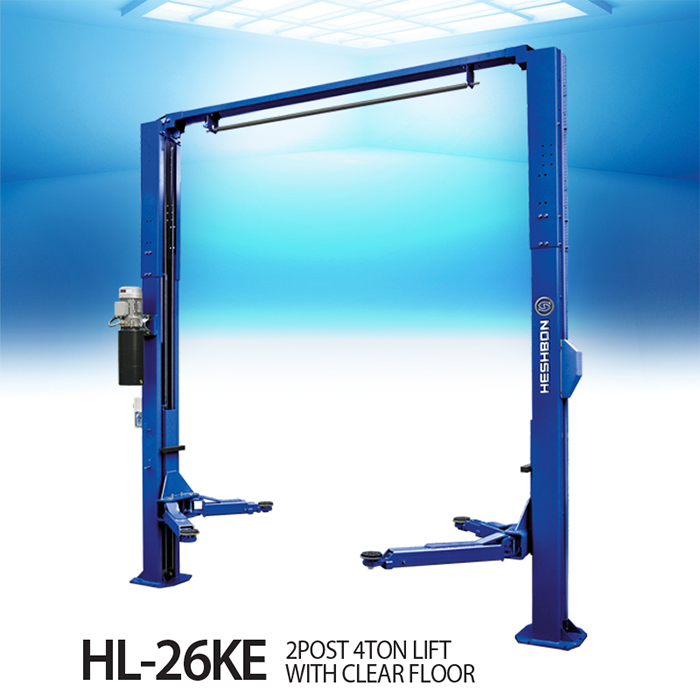

HL-26KE The two pillars lifting 4 tons Heshbon

HL-26KE The two pillars lifting 4 tons Heshbon

Model No.: HL-26KE
Origin: Heshbon
Made in Korea
Lifting Capacity (kg): 4,000
Max.Pressure: 190kgf/cm2
Max.Lifting Height: 1,890mm ~ 1,930mm
Min.Lifting Height: 90mm ~ 130mm
Stroke: 1,800mm
Ascending Time: Approx.30~40sec.

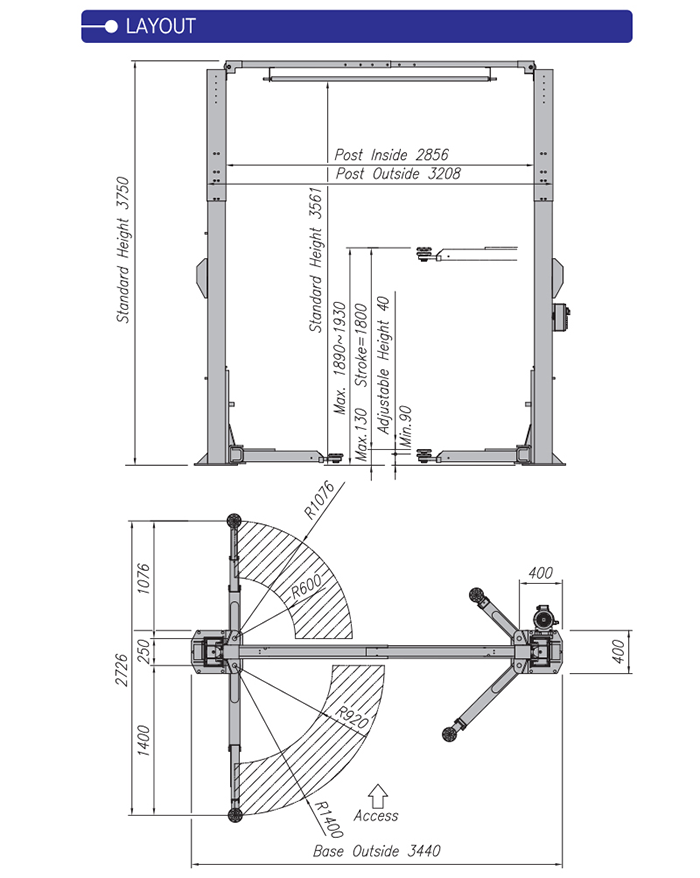

Dimension (mm): 2,726(L) X 3,750(W) X 3,440(H)
Power Supply & Motor  1ph : 2.5HP, 4P,220V 50/60Hz
                      3ph : 2HP, 4P,380V 50/60Hz
                      3ph : 2HP, 4P,415V 50/60Hz
                      3ph : 3HP, 2P,415V 50/60Hz
Net Weight: about 760 kg
