h2Heshbon HLT-7015A 1.5T Mobile Table Lift
Price: Call
Share
|
|
|
Mr. Vui
0944755799
| | |
Mr. Định
0968776499
| | |
Mr. Thuyên
+84963829640
| | |
Lê Thị Thanh Hương
0979898586
Heshbon HLT-7015A 1.5T Mobile Table Lift

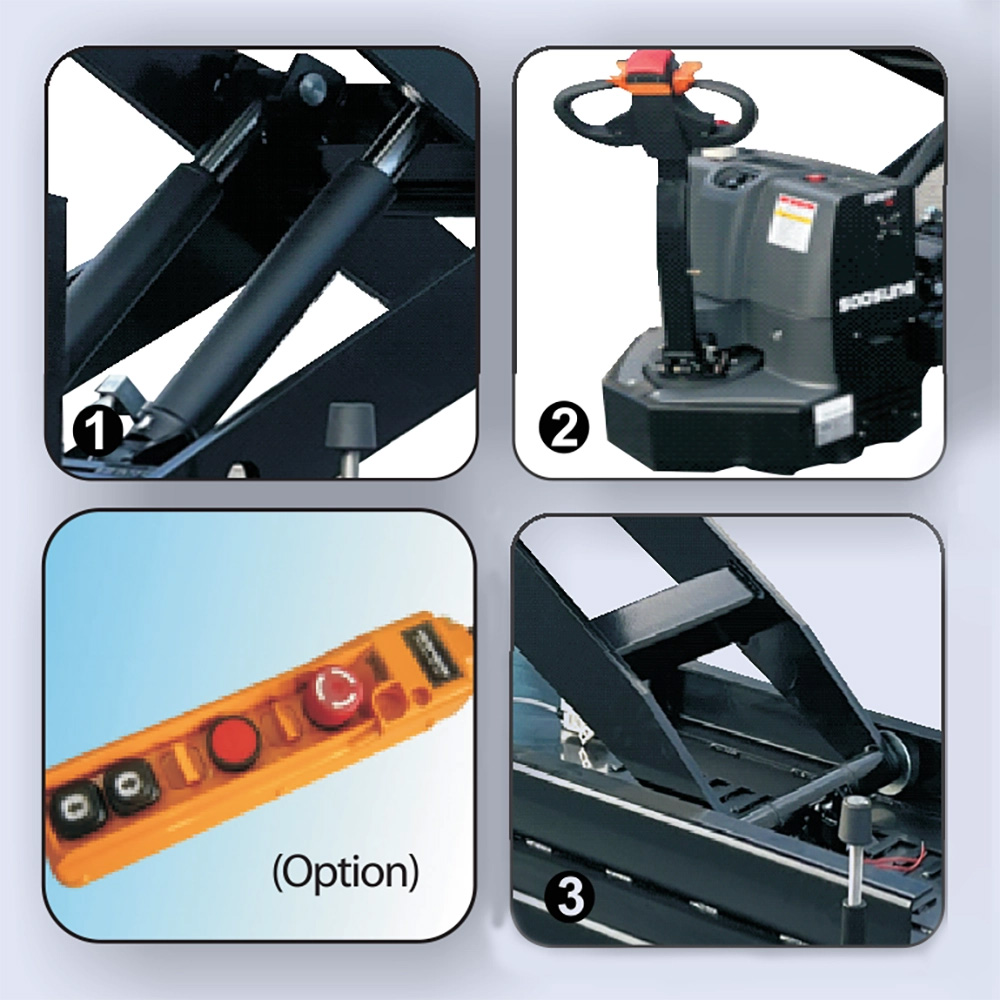

1. Features
Equipped with a tilting function for easy removal and installation of EV batteries
Extended-length slide platforms with a safety locker system for secure maintenance operations
Cylinder orifice applied for controlled movement
Upper-limit limit switch installed to prevent over-lifting
Electric drive system applied to enhance operator convenience
2. Key Features
Specifically designed for electric vehicle (EV) service and battery handling.
Tilting tabletop allows easy battery positioning and alignment.
Extendable sliding platform provides convenient battery removal and installation.
Safety locking system ensures stability during operation.
Integrated electric drive system improves handling efficiency.
Heavy-duty construction with a lifting capacity of up to 1.5 tons.
Manufactured in South Korea, offering excellent durability and reliability.
3. Specifications
Model No.: HLT-7015A
Brand: Heshbon
Made in Korea
Lifting Capacity (kg): 1,500 kg
Max.Lifting Height (mm): 1,900 mm

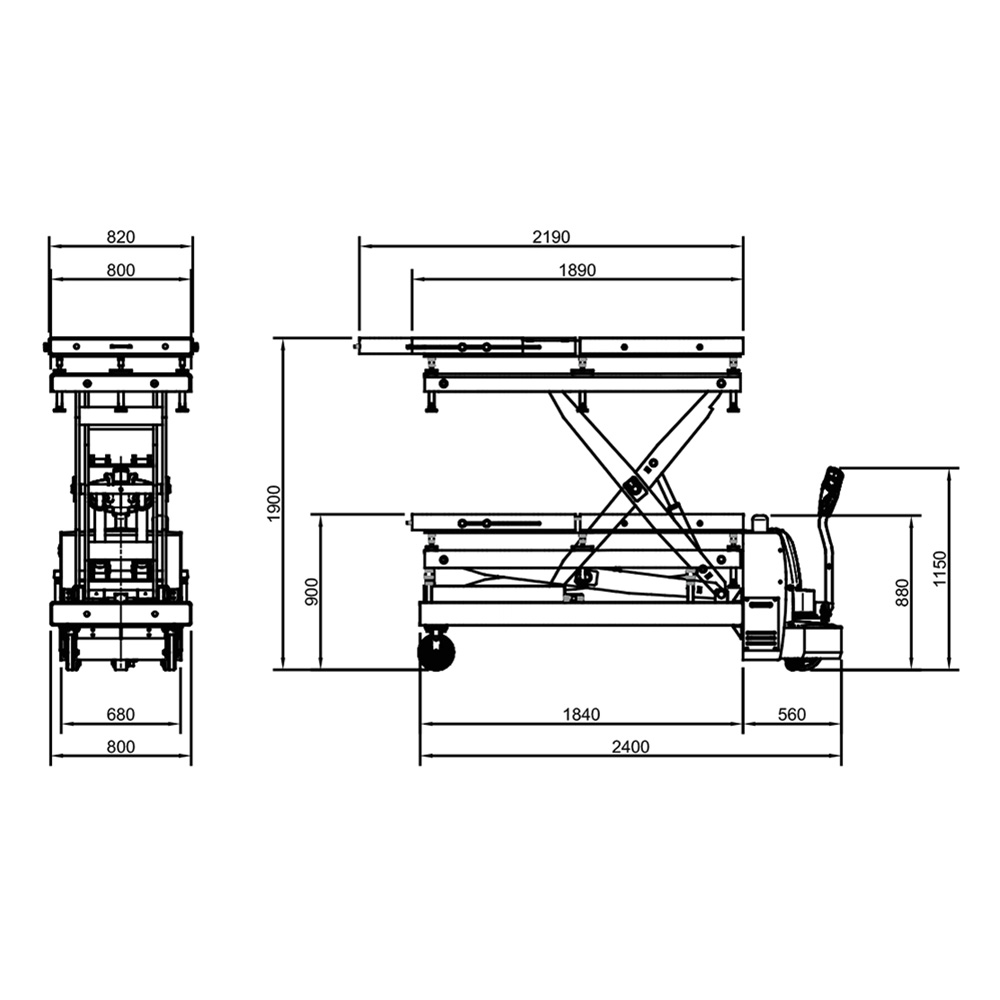

Dimension (mm): 1,880 ~ 2,200(L) X 820(D) X 900(H)
Power Supply: 1ph : 2.5HP X 4P, 220V 50/60Hz / 3ph : 2HP 4P, 220/380V, 50/60Hz
Net Weight: 1,050kg
Lifting time / Lowering time: 50~60sec / 40~60sec
4. Practical Applications
EV battery removal and installation.
Electric vehicle maintenance.
Hybrid battery servicing.
Industrial battery module handling.
EV service workshops.
Battery research centers.
Electric vehicle manufacturing plants.
5. How to Use
Move the lift to the work area using the electric drive system. Adjust the platform length as required. Secure the battery pack on the platform, raise it to the desired height and use the tilting function for accurate alignment during installation or removal.
6. Benefits
Improves EV battery service safety.
Reduces technician workload.
Enhances installation accuracy.
Saves maintenance time.
Protects expensive battery packs.
Easy workshop mobility.
Optimizes EV repair processes.
7. Suitable Users
EV service centers.
Electric vehicle workshops.
Hybrid vehicle maintenance facilities.
Battery manufacturing plants.
Battery research laboratories.
Automotive OEM service centers.
8. Real Case
An EV service center uses the HLT-7015A for battery pack removal from electric vehicles. The extended slide platform and tilting function significantly improve handling accuracy while reducing maintenance time and minimizing the risk of battery damage.
9. FAQ
Question 1: Is HLT-7015A suitable for EV battery removal?
Answer 1: Yes, it is specifically designed for EV battery service applications.
Question 2: What is the maximum lifting capacity?
Answer 2: The maximum lifting capacity is 1,500 kg.
Question 3: Does it have a tilting platform?
Answer 3: Yes, the platform can tilt for easier battery positioning.
Question 4: What is the maximum lifting height?
Answer 4: Up to 1,900 mm.
Question 5: Can it move around the workshop?
Answer 5: Yes, it features an electric drive system for convenient mobility.
Question 6: Does it include over-lift protection?
Answer 6: Yes, an upper limit switch prevents excessive lifting.
10. Product Summary
The Heshbon HLT-7015A is a premium 1.5-ton mobile table lift engineered for EV battery maintenance and heavy component handling. It combines high lifting performance, mobility, safety and precision for modern electric vehicle workshops.
11. Why Choose HLT-7015A
Made in Korea.
Designed for EV battery servicing.
1,500 kg lifting capacity.
1,900 mm lifting height.
Tilting platform function.
Extended slide platform with safety lock.
Electric drive mobility.
Advanced safety protection system.
12. Related Products
Heshbon HTL-1500EV
Heshbon HL-32D
Heshbon HL-53X
Heshbon HL-55F
Heshbon HL-42F
Heshbon HL-6050Y
